Design A Combinational Circuit For 4 Bit Binary Decrementer

Design a 4 bit combinational circuit decrementer using four full adder circuits. Binary decrement using full adder 4 bit fa fa fa fa s3 s2 s1 s0 cout cin 1 a3 1 a2 1 a1 1 a0. Design a four bit combinational circuit incrementer a circuit that adds 1 to a four bit binary number.

demoing a linoleum tiles off a finish wood floor design your own room flooring denver rug dealers dell optiplex 3010 power supply upgrade destination phenix carpet decorative kitchen floor tile designer carpet melbourne dented car door repair cost

Solved Using Four Half Adders Design A Four Bit Combinat Chegg Com

Chapter 4 Homework V3 Solutions Ens 221 Csi Studocu

Let S Learn Computing 4 Bit Binary Decrementer

Q 4 11 Using Four Half Adders Hdl See Problem 4 54 A Design A Full Subtractor Circuit Incremen Youtube

Solved Using Four Half Adders A Design A Four Bit Combinational Circuit Incrementer A Circuit That Adds I To A Four Bit Binary Number B Design A Four Bit Combinational Circuit Decrementer A Circui Study Com

Let S Learn Computing 4 Bit Binary Incrementer

Lets consider two 4 bit binary numbers a and b as inputs to the digital circuit for the operation with digits.

Design a combinational circuit for 4 bit binary decrementer. For this it simply adds 1 to the existing value stored in a register. It is made by cascading n full adders for n number of bits i e. Hence a 4 bit binary decrementer requires 4 cascaded half adder circuits. The circuit consists of 4 full adders since we are performing operation on 4 bit numbers.

Design a bcd to 7 segment decoder circuit for segment e that has a 4 bit binary input and a single output 7e specified by the truth table. The design procedure for combinational logic circuits starts with the problem specification and comprises the following steps. As stated above we add 1111 to 4 bit data in order to subtract 1 from it. The adder subtractor circuit has the following values for mode input m and data inputs a and b.

A0 a1 a2 a3 for a b0 b1 b2 b3 for b. 4 13 is a 4 bit adder subtractor circuit. In each case determine the values of the four sum outputs and the carry c. A circuit that adds one to a 4 bit binary number the circuit can be designed using four half adders.

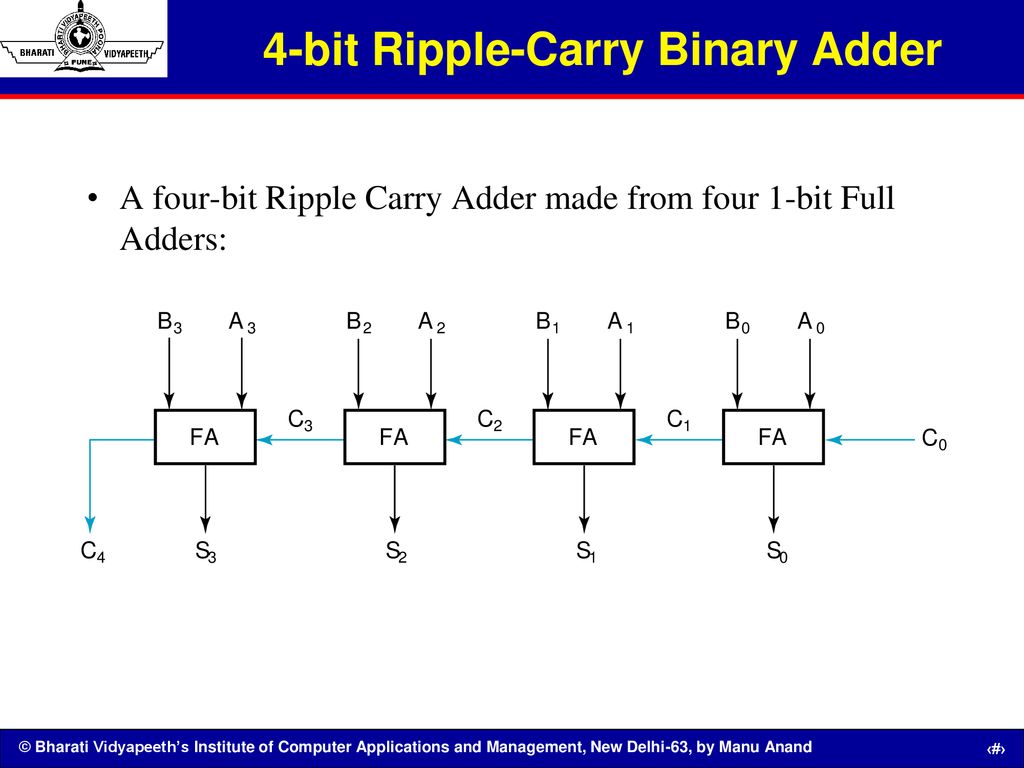

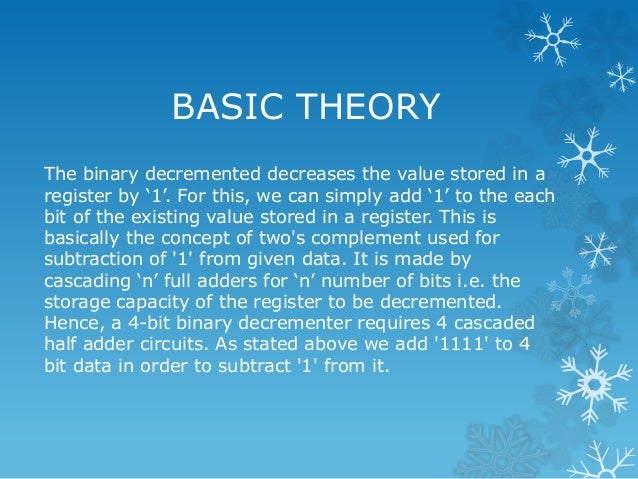

The storage capacity of the register to be incremented. Hence a 4 bit binary decrementer requires 4 cascaded full adder circuits. The increment micro operation adds one binary value to the value of binary variables stored in a register. In this work we improve the performance of the binary adder circuit to increase the speed of the operation.

The storage capacity of the register to be decremented. Design a four bit combinational circuit decrementer a circuit that subtracts 1 from a four bit binary number. As stated above we add 1111 to 4 bit data in order to subtract 1 from it. However our main focus in this paper is to design a binary incrementer and decrementer circuit for a qca system.

M a b a 0 0111 0110. Design a 4 bit combinational circuit decrementer using four full adder circuits. Hence a 4 bit binary incrementer requires 4 cascaded half adder circuits. A binary increment is required to perform an increment of binary numbers in the alu.

Determine the inputs and outputs. Design a 4 bit combinational circuit incrementer. For instance a 4 bit register has a binary value 0110 when incremented by one the value becomes 0111. The increment micro operation is best implemented by a 4 bit combinational circuit incrementer.

Determine the outputs of this circuit s v and c for various. It is made by cascading n half adders for n number of bits i e. This circuit requires prerequisite knowledge of exor gate binary addition and subtraction full adder. This problem has been solved.
